UHF RFID RAIN CAEN ION - EOL End of Life

ION R430 - EOL End of Life

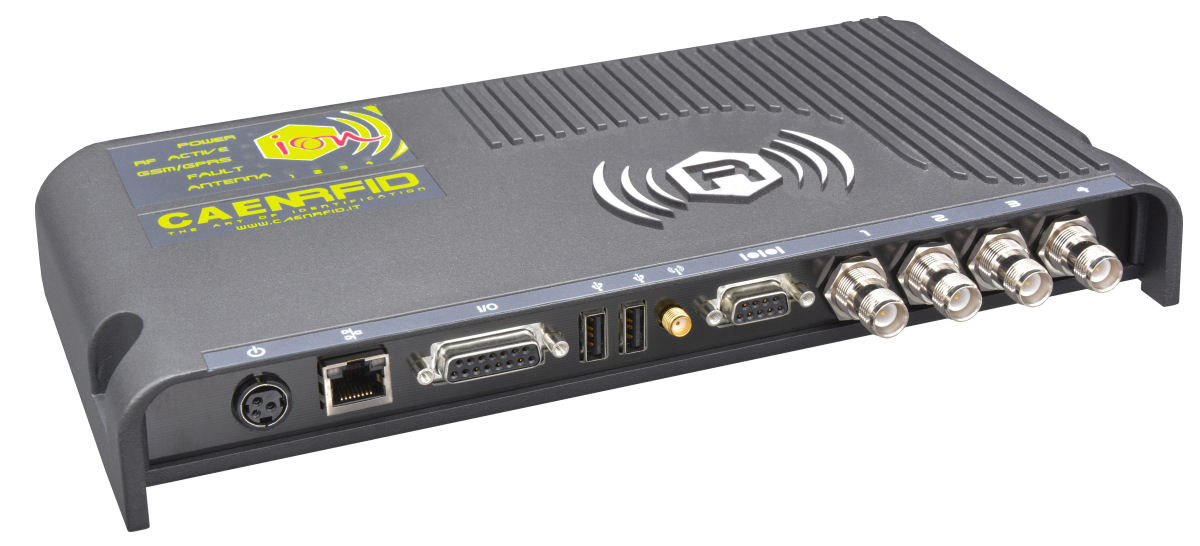

**RFID READER CAEN ION R430** RFID UHF Reader CAEN R430 ION

The Ion (Model R4301P) is the top-of-the-range portal reader of the easy2read © Family. CAEN RFID has carefully designed the device taking into account customer requests and on-field experience on RFID installations. The result is not only an UHF reader, it's a unique combination of outstanding RFID reading performances, computing power and communication capabilities.
The reader is optimized for portal installations, featuring full power to up to 4 antennas, GEN2 Dense Reader Mode management and high speed read rates. Based on an embedded HW architecture (x86) and standard operating system (Linux), the Ion eases the development of custom software and solutions.

The on-board computing power and connectivity remove the need for an external PC and related cabling. This results in deployment and operations cost savings, thus reducing the total cost of ownership of installed devices. The Ion is best suited for complex AutoID scenarios, where the information can be collected and fed directly to the reader from multiple sources such as Smart Card readers, Barcode readers, GPS and other in-field sensors.

All data can be handled locally through data buffering, filtering and aggregation, in order to directly provide decision-making data to higher level Business Intelligence processes. The same data can also trigger local actuators and screen displays for in-field real-time processes in a standalone mode.
The presence on board of an optional integrated GPRS modem or WIFI interface module, together with its compact and versatile form factor, allow to use it in any worldwide installation requiring RFID usage in remote areas.
As a result of all the above, the Ion allows solution providers to customize the reader to each application, thus creating their own specialized devices accordingly.

Weltweiter Einsatz

The Ion complies with and can operate in different regulatory environments (Europe, US, Australia, China, Korea, Singapore, Taiwan).

Typische Anwendungen des CAEN ION

Logistik UHF Reader Portale
Warenverfolgung
Gabelstapler
Automatisierungstechnik
Fahrzeugidentifikation
Tieridentifikation
